13/64" High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 11546715

OSG

13/64" High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 11546715

MFR# 11546715Series 1150

$44.31List $56.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2
CoatingCoated

Description

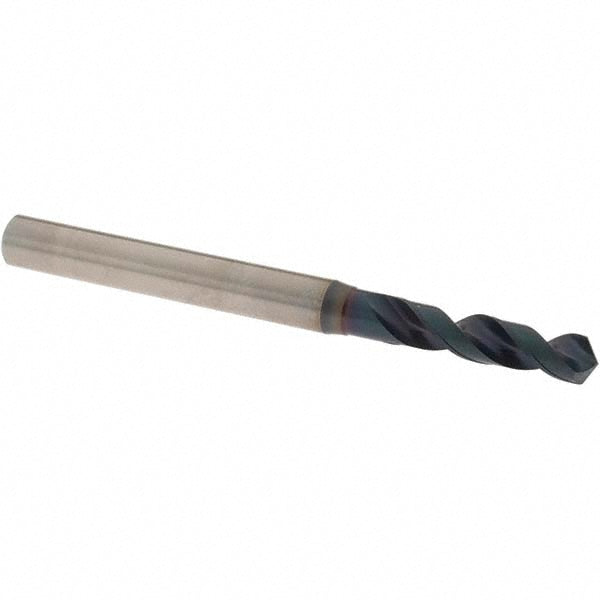

The OSG 11546715 is a 13/64" High Speed Steel Screw Machine drill bit with a Coated finish, 120° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1150.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size in13/64
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio3xD
Flute length (mm)26.00
Flute typeSpiral
Number of flutes2
Overall length (mm)70.00
Point typeFaceted
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
