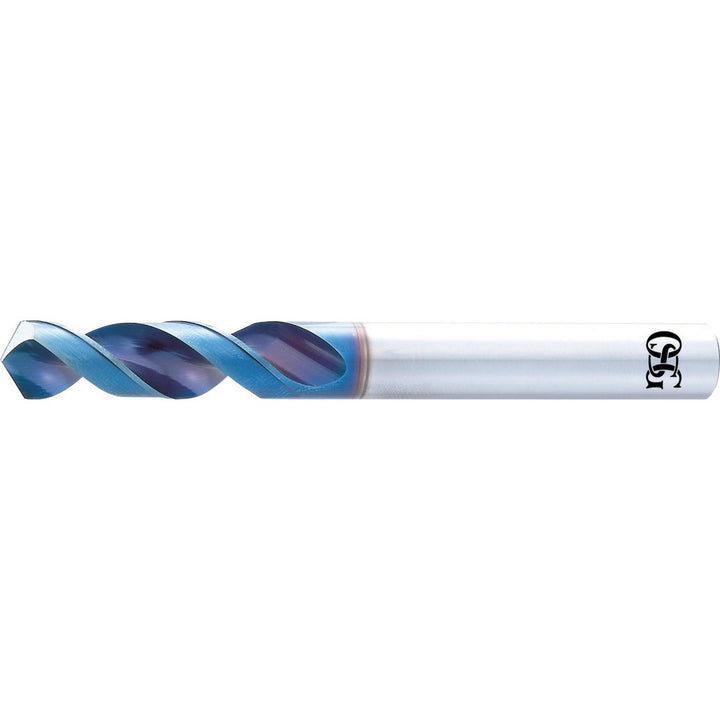

0.2205" High-Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 11551115

OSG

0.2205" High-Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 11551115

MFR# 11551115Series 1150

$41.73List $53.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The OSG 11551115 is a 0.2205" High-Speed Steel Screw Machine drill bit with a Coated finish, 120° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1150.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.2205
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Overall length2.8346
Point typeFaceted
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh-Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
