OSG

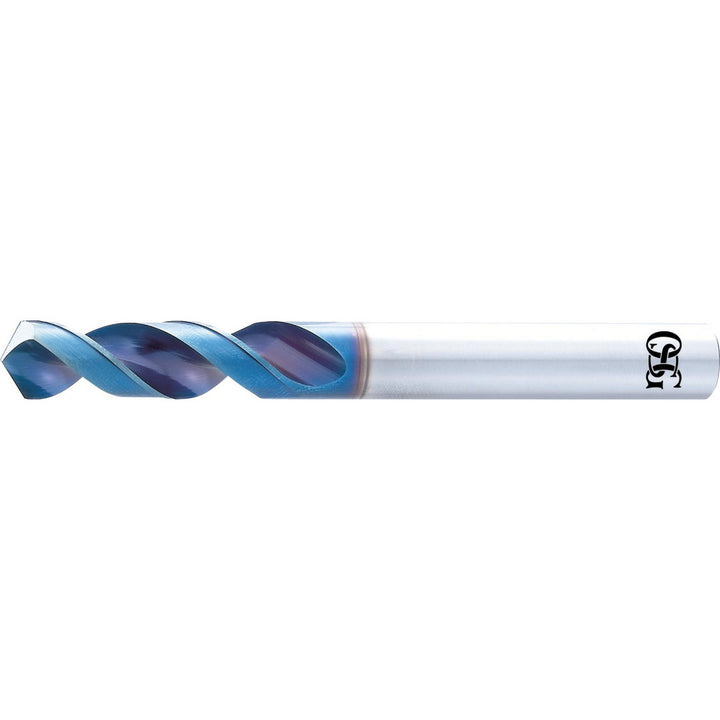

25/64" High Speed Steel Screw Machine Drill Bit, Coated, 120° point - OSG 11564115
MFR# 11564115Series 1150
$104.68List $131.93
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size25/64
Flutes2
CoatingCoated
Description
The OSG 11564115 is a 25/64" High Speed Steel Screw Machine drill bit with a Coated finish, 120° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1150.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size in25/64
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle120
Flute by diameter ratio3xD
Flute length (mm)43.00
Flute typeSpiral
Number of flutes2
Overall length (mm)93.00
Point typeFaceted
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
