OSG

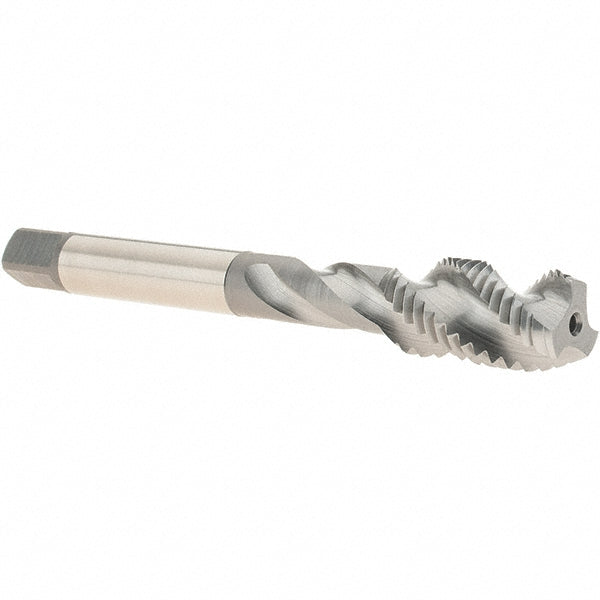

M10x1.25 MF High-Speed Steel Tap - OSG 11624
MFR# 11624Series 123
$28.62List $36.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The OSG 11624 is a MF High-Speed Steel tap. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)41
Number of flutes3
Overall length (mm)75
Shank diameter (mm)7
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)18
Thread limitH2
Thread size (mm)M10x1.25
Thread standardMF
