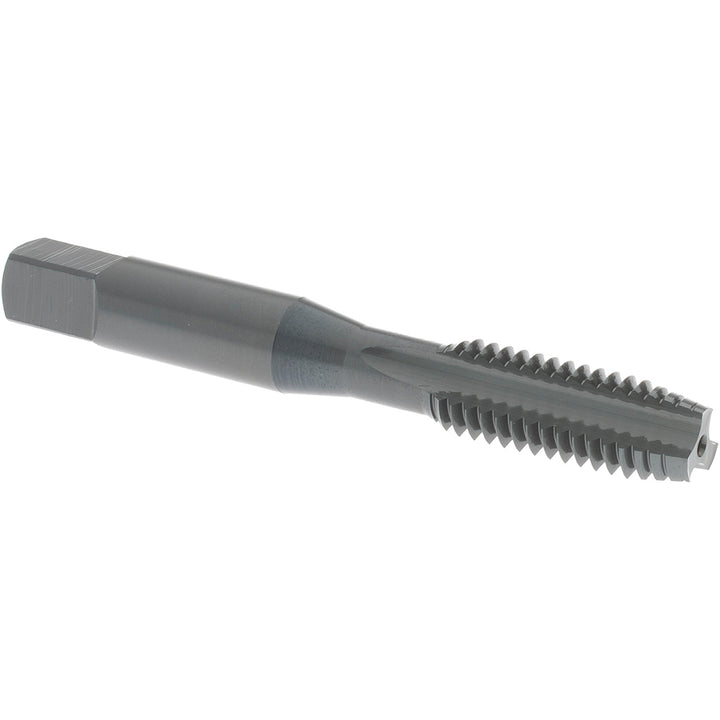

3/8-16 UNC High-Speed Steel Standard Tap, Oxide - OSG 1171301
MFR# 1171301Series 103
$13.22List $16.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingOxide
Description
The OSG 1171301 is a 3/8-16 UNC High-Speed Steel Standard tap with a Oxide finish. 3 flutes.
Specifications
ApplicationTapping
ChamferPlug
Class of fit3B
Coating finishOxide
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.4134
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Tap typeStandard
Threads per inch16
Thread directionRight Hand
Thread length in1-1/4
Thread limitH3
Thread size in3/8-16
Thread standardUNC
