OSG

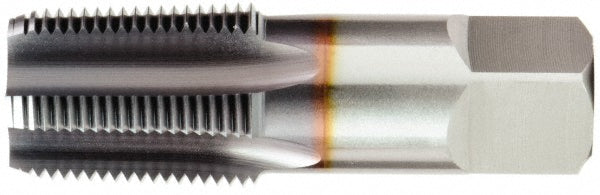

3/8-18 NPT High-Speed Steel Standard Tap - OSG 1200700500
MFR# 1200700500Series 12007
$69.83List $89.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/8-18
Description
The OSG 1200700500 is a 3/8-18 NPT High-Speed Steel Standard tap. 4 flutes.
Specifications
HookRegular
MaterialHigh-Speed Steel
Material applicationCarbon Steel; Cast Iron; Aluminum
Number of flutes4
Overall length2.562992125984252
Projection0.4540
Shank diameter0.7000
Square size0.5310
Tap typeStandard
Threads per inch18
Thread length in1-1/16
Thread profileStandard
Thread size in3/8-18
Thread standardNPT
