OSG

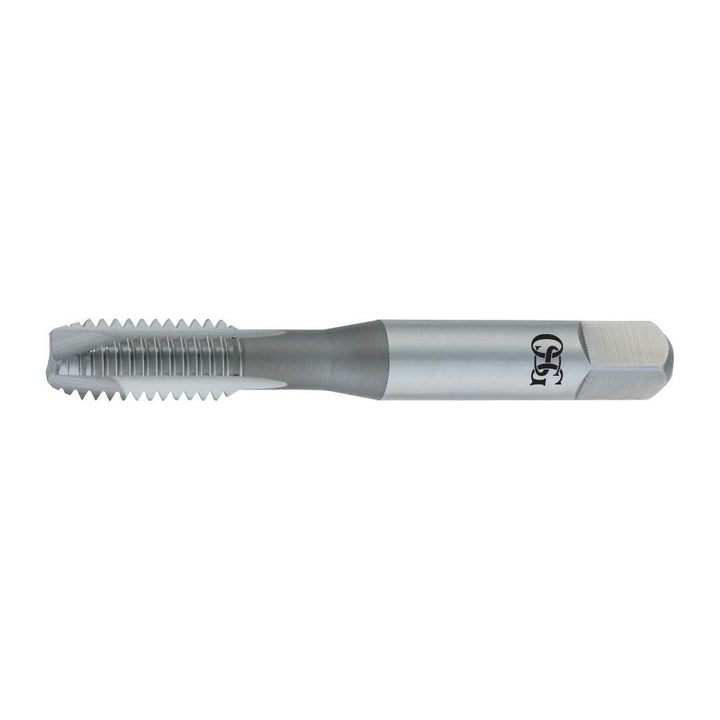

#3-48 UNC High-Speed Steel Tap - OSG 1201000
MFR# 1201000Series 105
$16.71List $21.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#3-48
Description
The OSG 1201000 is a #3-48 UNC High-Speed Steel tap. 2 flutes.
Specifications
ChamferPlug
Class of fit3B
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes2
Overall length1.813
OversizeNo
Shank diameter0.141
Thread directionRight Hand
Thread length in1/2
Thread limitH1
Thread size in#3-48
Thread standardUNC
