OSG
#4-40 UNC High-Speed Steel Tap, TiCN - OSG 1206408
MFR# 1206408Series 105
$15.28List $19.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingTiCN
Description

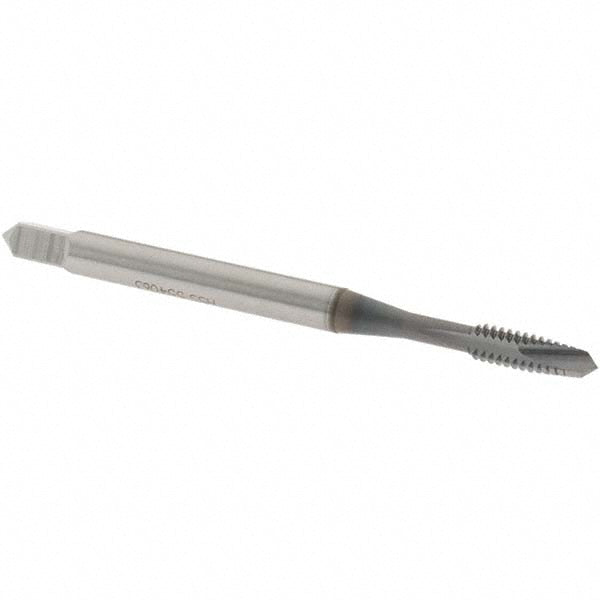

The OSG 1206408 is a #4-40 UNC High-Speed Steel tap with a TiCN finish. 2 flutes.
Specifications
ChamferPlug
Class of fit2B/3B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes2
Overall length1.875
OversizeNo
Shank diameter0.141
Thread directionRight Hand
Thread length in9/16
Thread limitH2
Thread size in#4-40
Thread standardUNC
