OSG

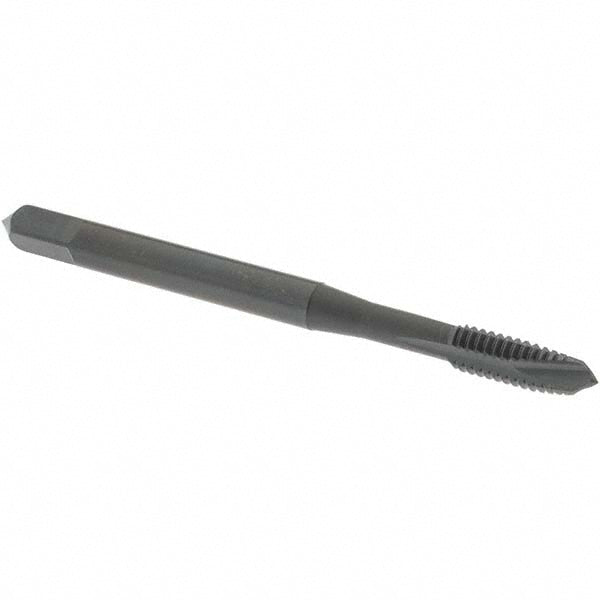

#8-32 UNC High-Speed Steel Spiral Point Tap, Steam Oxide - OSG 1213201
MFR# 1213201Series 105
$10.15List $13.01
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingSteam Oxide
Description
The OSG 1213201 is a #8-32 UNC High-Speed Steel Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel
Material applicationLow-Carbon Steel; Medium-Carbon Steel; High-Carbon Steel; Cast Iron; Non-Ferrous Metal
Neck length0.3660
Number of flutes3
Overall length2.2600in
OversizeNo
Shank diameter0.1680
StyleSpiral Point
Threads per inch32in
Thread directionRight Hand
Thread length in3/4
Thread limitH4
Thread pitch0.0313mm
Thread size in#8-32
Thread standardUNC
