OSG
#10-32 UNF High-Speed Steel Tap, TiCN - OSG 1213808
MFR# 1213808Series 105
$16.49List $21.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
CoatingTiCN
Description

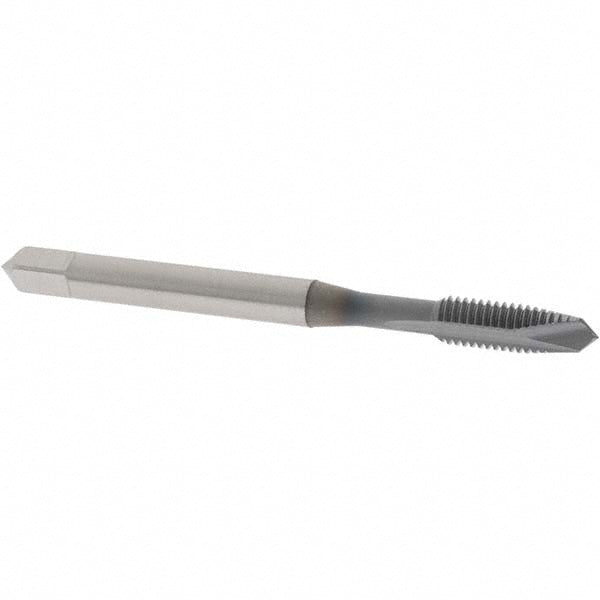

The OSG 1213808 is a #10-32 UNF High-Speed Steel tap with a TiCN finish. 2 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes2
Overall length2.375
Shank diameter0.194
Thread directionRight Hand
Thread length in7/8
Thread limitH3
Thread size in#10-32
Thread standardUNF
