OSG
#12-24 UNC High-Speed Steel Tap, TiCN - OSG 1214208
MFR# 1214208Series 105
$17.90List $22.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#12-24
CoatingTiCN
Description

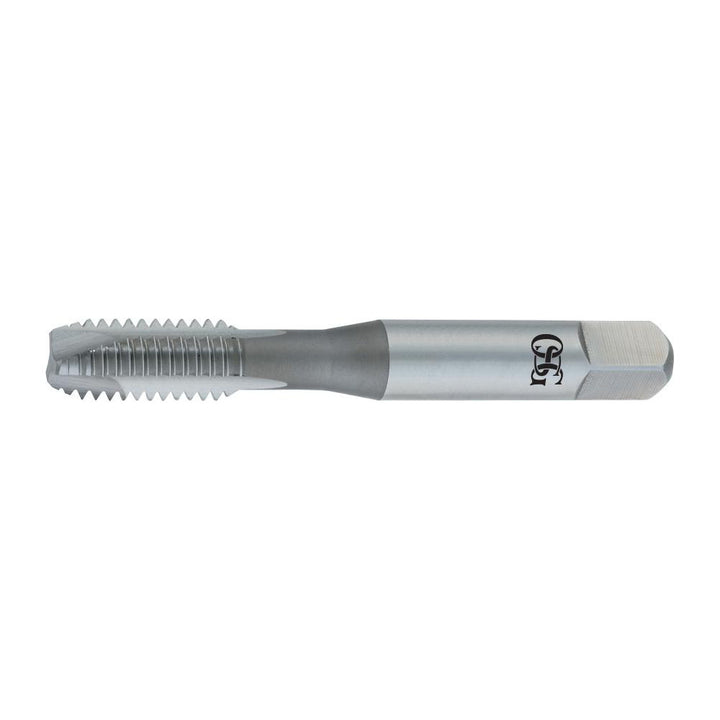

The OSG 1214208 is a #12-24 UNC High-Speed Steel tap with a TiCN finish. 2 flutes.
Specifications
ChamferPlug
Class of fit2B/3B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes2
Overall length2.375
OversizeNo
Shank diameter0.22
Thread directionRight Hand
Thread length in15/16
Thread limitH3
Thread size in#12-24
Thread standardUNC
