OSG

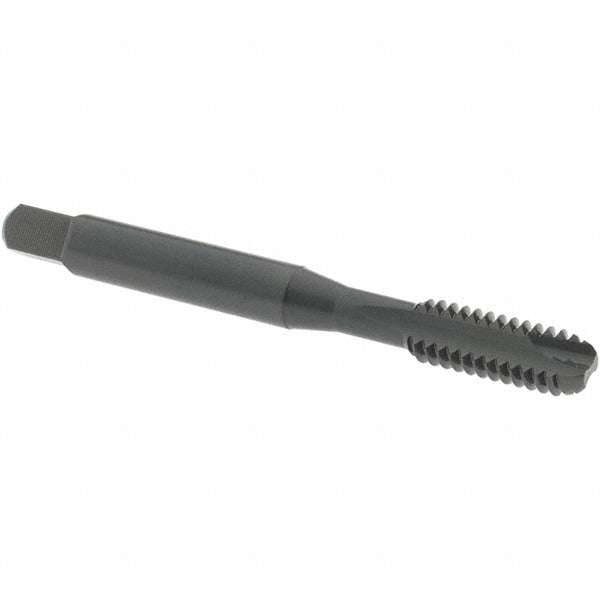

1/4-20 UNC High-Speed Steel Tap, Steam Oxide - OSG 1230101
MFR# 1230101Series 105B
$13.57List $17.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
CoatingSteam Oxide
Description
The OSG 1230101 is a 1/4-20 UNC High-Speed Steel tap with a Steam Oxide finish. 2 flutes.
Specifications
ChamferBottomg
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes2
Overall length2.5
OversizeNo
Shank diameter0.255
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in1/4-20
Thread standardUNC
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
