OSG

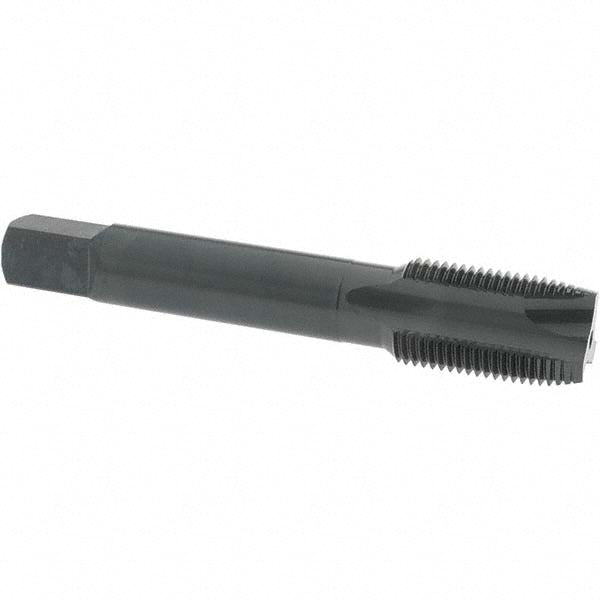

3/4-16 UNF High-Speed Steel Tap, Steam Oxide - OSG 1233801
MFR# 1233801Series 105
$75.86List $97.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-16
CoatingSteam Oxide
Description
The OSG 1233801 is a 3/4-16 UNF High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes3
Overall length4.25
OversizeNo
Shank diameter0.59
Thread directionRight Hand
Thread length in2
Thread limitH3
Thread size in3/4-16
Thread standardUNF
