OSG
5/8-11 UNC HSS Spiral Point Tap, TiCN - OSG 1243208
MFR# 1243208Series 105
$72.55List $93.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingTiCN
Description

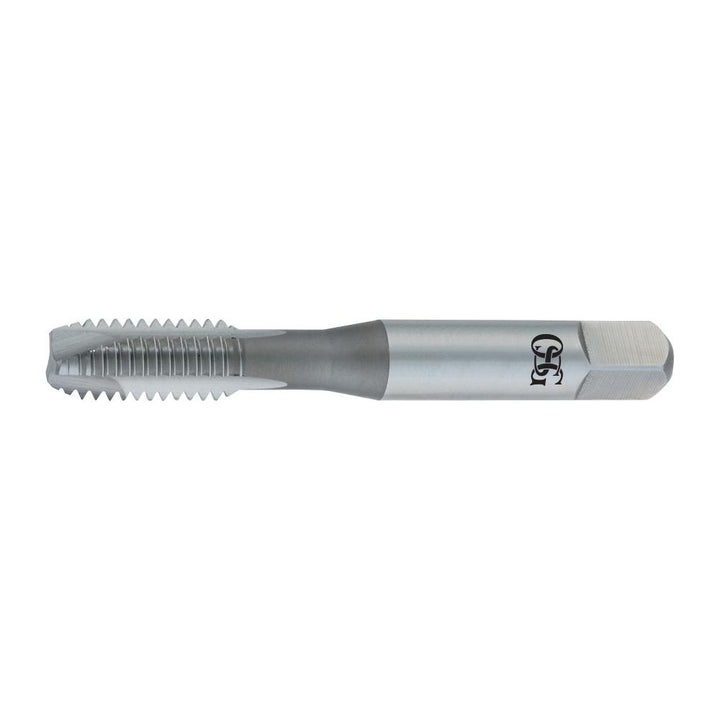

The OSG 1243208 is a 5/8-11 UNC HSS Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationLow-Carbon Steel; Medium-Carbon Steel; High-Carbon Steel; Cast Iron; Non-Ferrous Metal
Neck length0.4720
Number of flutes3
Overall length3.81
OversizeNo
Shank diameter0.4800
StyleSpiral Point
Threads per inch11
Thread directionRight Hand
Thread length in1-13/16
Thread limitH5
Thread pitch0.0909
Thread size in5/8-11
Thread standardUNC
