OSG

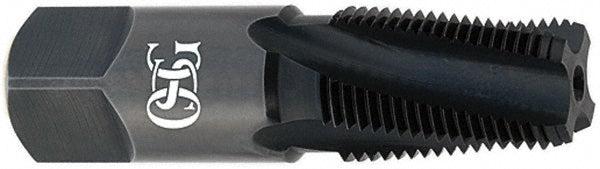

1/8-27 NPT High-Speed Steel Tap, TiCN - OSG 1250508
MFR# 1250508Series S125
$55.98List $71.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/8-27
CoatingTiCN
Description
The OSG 1250508 is a 1/8-27 NPT High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ApplicationTapping
ChamferBottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Helix angle15
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes4
Overall length in2-1/8
Projection0.2344
Shank diameter0.3125
Square length in0.375
Square size0.2340
Threads per inch27
Thread length in3/4
Thread size in1/8-27
Thread standardNPT
