OSG

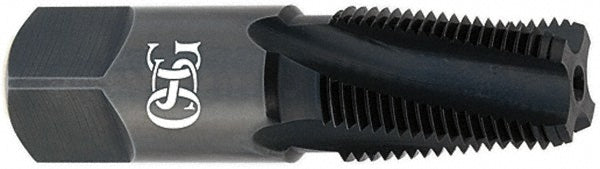

3/4-14 NPT High-Speed Steel Tap, TiCN - OSG 1252508
MFR# 1252508Series S125
$165.75List $212.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size3/4-14
CoatingTiCN
Description
The OSG 1252508 is a 3/4-14 NPT High-Speed Steel tap with a TiCN finish. 5 flutes.
Specifications
ApplicationTapping
ChamferBottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Helix angle15
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes5
Overall length in3-1/4
Projection0.4531
Shank diameter0.9063
Square length in0.6875
Square size0.6790
Threads per inch14
Thread length in1-3/8
Thread size in3/4-14
Thread standardNPT
