OSG
#10-32 UNF High-Speed Steel Spiral Point Tap, Steam Oxide - OSG 1294801
MFR# 1294801Series 917
$59.02List $75.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
CoatingSteam Oxide
Description

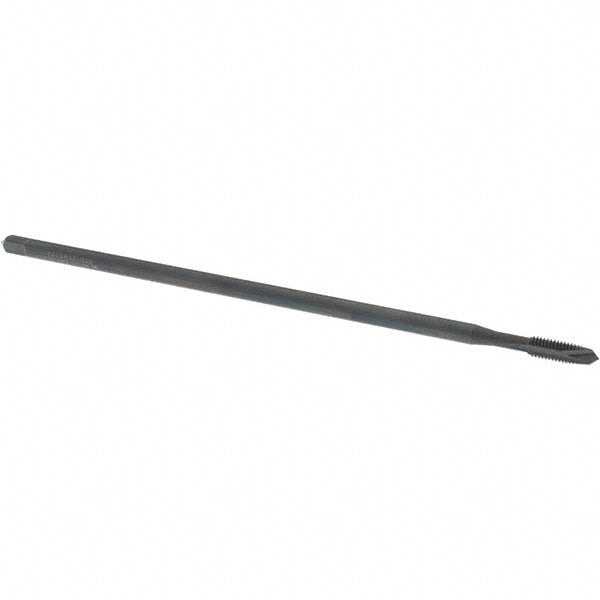

The OSG 1294801 is a #10-32 UNF High-Speed Steel Spiral Point tap with a Steam Oxide finish. 2 flutes.
Specifications
ApplicationThreading
ChamferPlug
Class of fit2B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle0
MaterialHigh-Speed Steel
Material applicationCast Iron; Aluminum Casting; Aluminum; Carbon Steel
Neck length0.8740
Number of flutes2
Overall length in6
Reduced shankYes
Shank diameter0.194
Square length0.25
Square size0.152
Tap typeSpiral Point
Thread directionRight Hand
Thread length in7/8
Thread limitH3
Thread size in#10-32
Thread standardUNF
