OSG

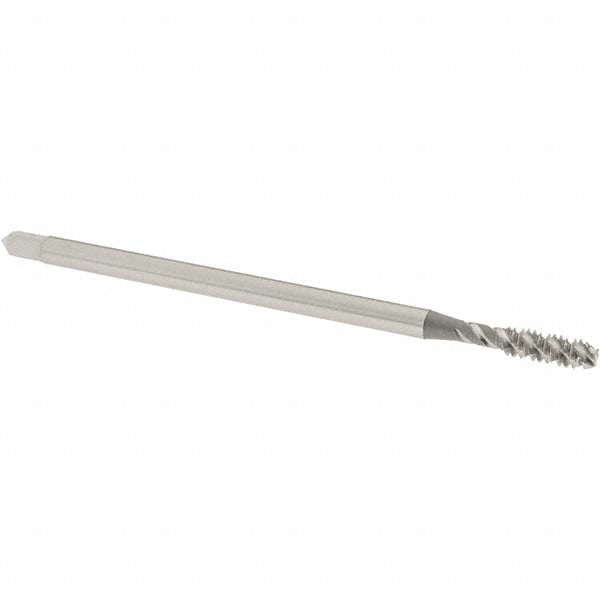

#10-24 UNC High-Speed Steel Spiral Flute Tap - OSG 1297100
MFR# 1297100Series 918
$59.13List $75.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
Description
The OSG 1297100 is a #10-24 UNC High-Speed Steel Spiral Flute tap. 3 flutes.
Specifications
ApplicationThreading
ChamferBottoming
Class of fit2B; 3B
Flute directionRight Hand
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel; Cast Iron
Neck length0.8740
Number of flutes3
Overall length in4
Reduced shankYes
Shank diameter0.194
Square length0.25
Square size0.152
Tap typeSpiral Flute
Thread directionRight Hand
Thread length in7/8
Thread limitH3
Thread size in#10-24
Thread standardUNC
