OSG

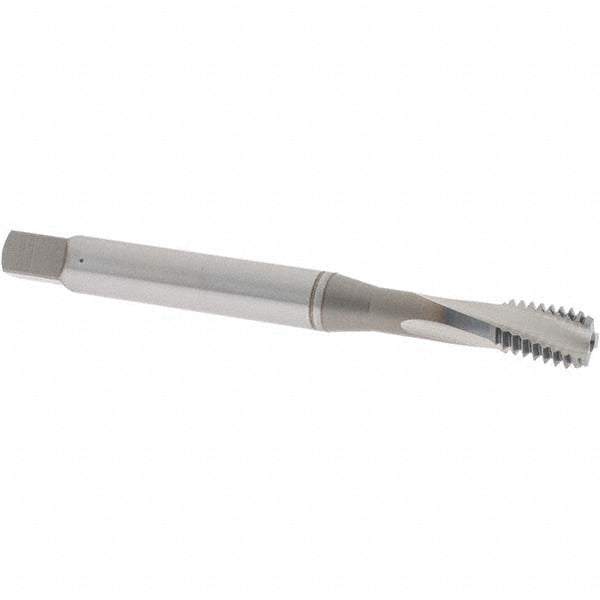

3/8-16 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1301300908
MFR# 1301300908Series 13013
$73.99List $94.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiCN
Description
The OSG 1301300908 is a 3/8-16 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishTiCN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel
Neck length5.511811236225
Number of flutes3
Overall length9.8425196853937
OversizeNo
Shank diameter1.644
Square length0.4375
Square size0.286
Threads per inch16
Thread directionRight Hand
Thread length0.5
Thread size in3/8-16
Thread standardUNC
