OSG

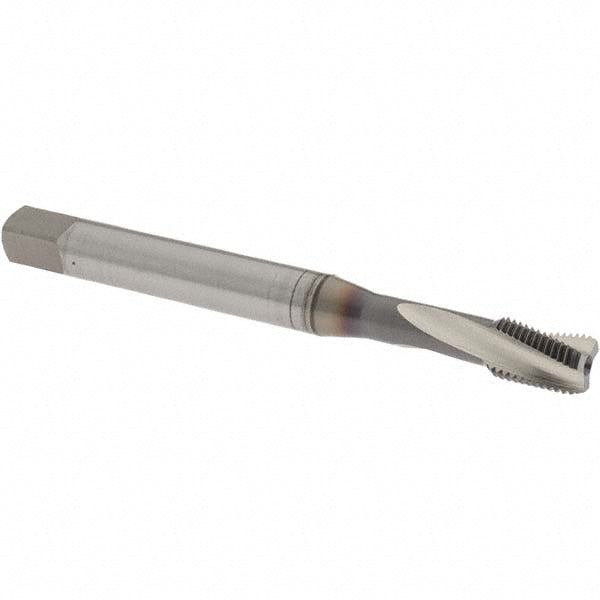

3/8-24 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 1301301008
MFR# 1301301008Series 13013
$73.99List $94.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingTiCN
Description
The OSG 1301301008 is a 3/8-24 UNF Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishTiCN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel
Neck length1.378
Number of flutes3
Overall length3.93778741575
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Threads per inch24
Thread directionRight Hand
Thread length0.5
Thread size in3/8-24
Thread standardUNF
