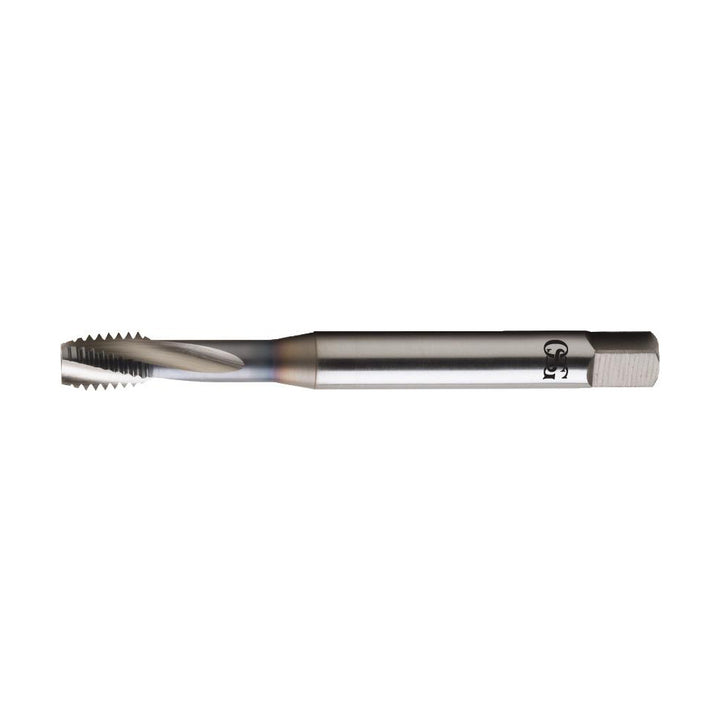

7/16-20 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 1301301208
MFR# 1301301208Series 13013
$95.59List $122.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingTiCN
Description
The OSG 1301301208 is a 7/16-20 UNF Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishTiCN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel
Neck length0.535
Number of flutes3
Overall length1.813
OversizeNo
Shank diameter0.141
Square length0.40625
Square size0.242
Threads per inch20
Thread directionRight Hand
Thread length0.571
Thread size in7/16-20
Thread standardUNF
