OSG

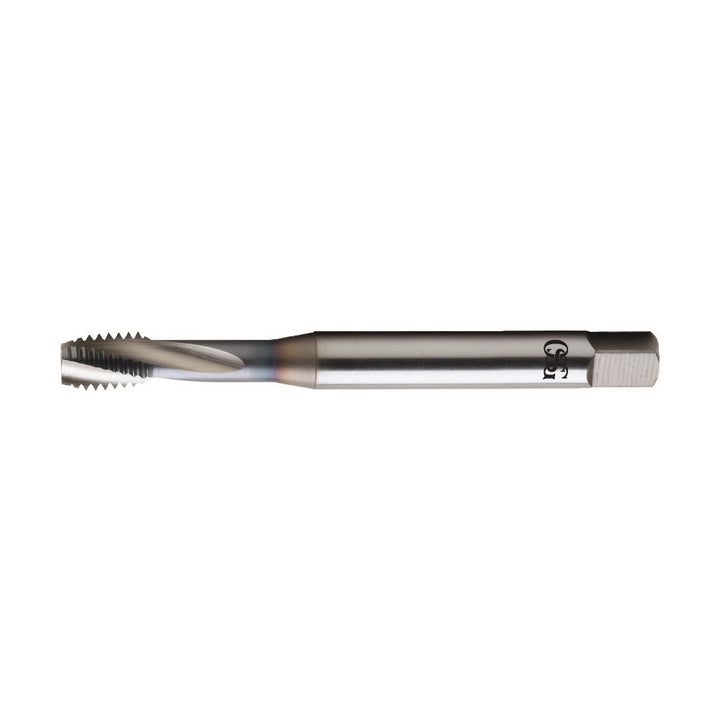

3/4-16 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 1301301808
MFR# 1301301808Series 13013
$206.33List $264.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingTiCN
Description
The OSG 1301301808 is a 3/4-16 UNF Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishTiCN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel
Neck length0.685
Number of flutes4
Overall length2
OversizeNo
Shank diameter0.141
Square length0.6875
Square size0.442
Threads per inch16
Thread directionRight Hand
Thread length0.799
Thread size in3/4-16
Thread standardUNF
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
