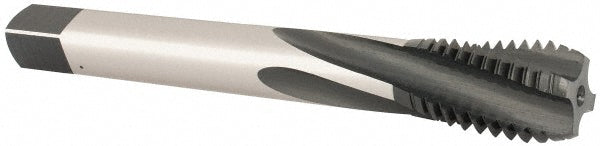

5/8-11 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1301400301
MFR# 1301400301Series 13014
$99.11List $127.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingSteam Oxide
Description
The OSG 1301400301 is a 5/8-11 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length2.126
Number of flutes4
Overall length3.813
OversizeNo
Shank diameter0.48
Square length0.5625
Square size0.36
Threads per inch11
Thread directionRight Hand
Thread length0.728346456692913
Thread size in5/8-11
Thread standardUNC
