OSG

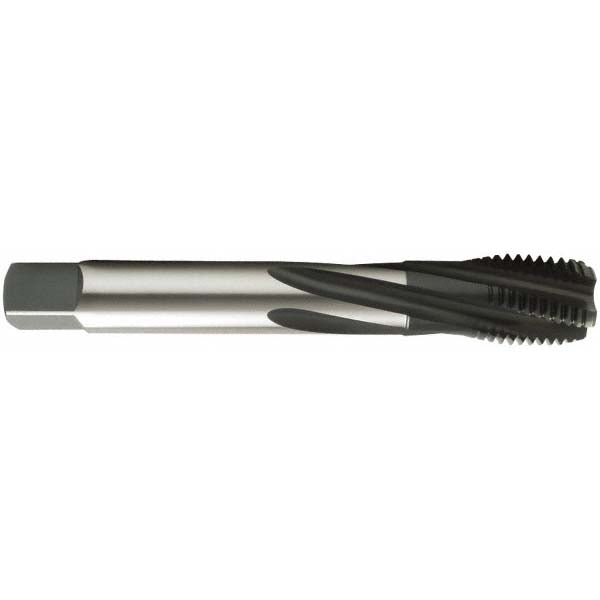

5/8-18 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1301400401
MFR# 1301400401Series 13014
$105.94List $133.51
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
CoatingSteam Oxide
Description
The OSG 1301400401 is a 5/8-18 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length2.429
Number of flutes4
Overall length4.25
Shank diameter0.59
Square length0.5625
Square size0.36
Threads per inch18
Thread directionRight Hand
Thread length0.728346456692913
Thread size in5/8-18
Thread standardUNF
