OSG

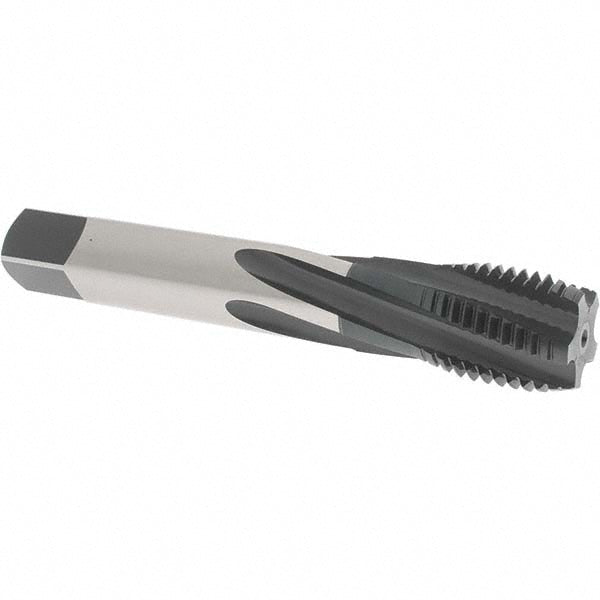

1-1/4-7 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1301401201
MFR# 1301401201Series 13014
$425.25List $535.91
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size1-1/4-7
CoatingSteam Oxide
Description
The OSG 1301401201 is a 1-1/4-7 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 5 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length0.866
Number of flutes5
Overall length2.375
OversizeNo
Shank diameter0.194
Square length1
Square size0.766
Threads per inch7
Thread directionRight Hand
Thread length1.141732283464567
Thread size in1-1/4-7
Thread standardUNC
