OSG

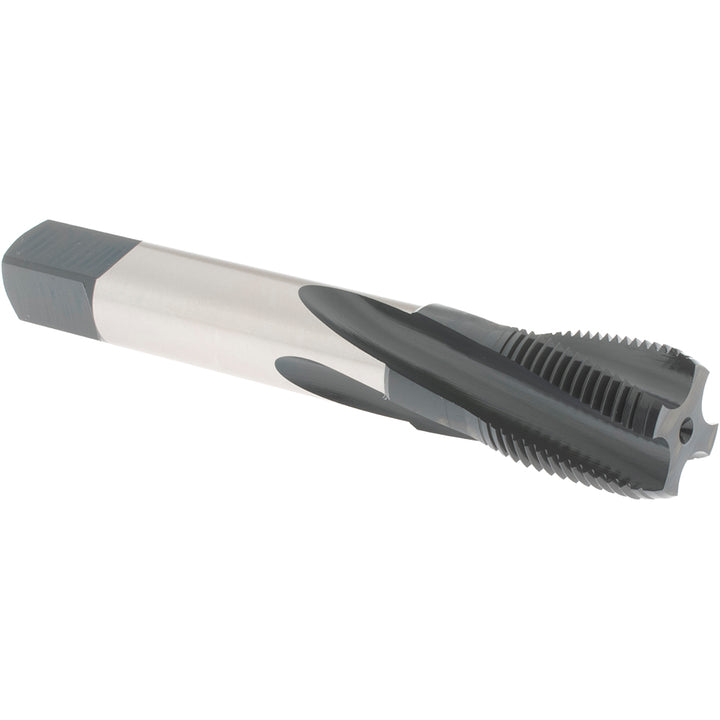

7/8-14 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1301402901
MFR# 1301402901Series 13014
$173.78List $222.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-14
CoatingSteam Oxide
Description
The OSG 1301402901 is a 7/8-14 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.126
Number of flutes4
Overall length2.719
Shank diameter0.318
Square length0.75
Square size0.523
Threads per inch14
Thread directionRight Hand
Thread length0.889763779527559
Thread size in7/8-14
Thread standardUNF
