OSG

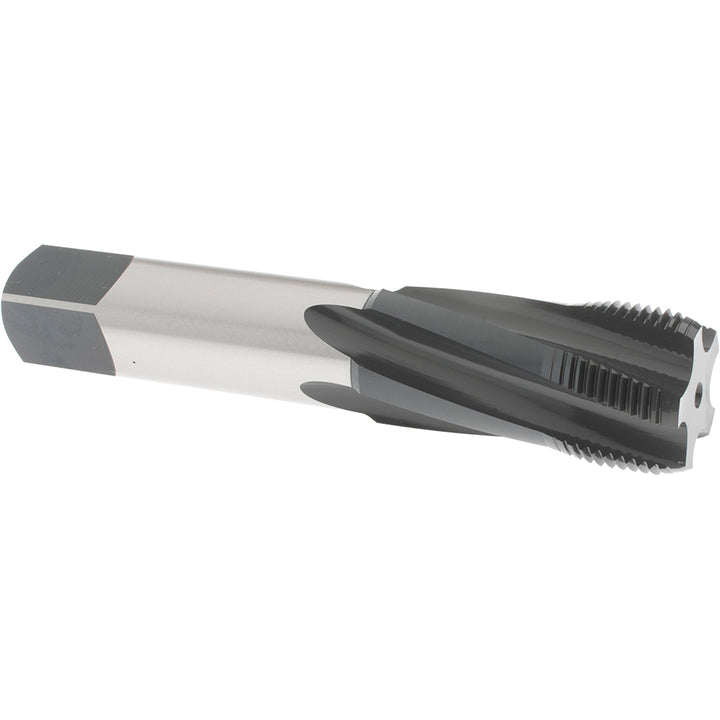

1-1/4-12 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1301403201
MFR# 1301403201Series 13014
$353.85List $453.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size1-1/4-12
CoatingSteam Oxide
Description
The OSG 1301403201 is a 1-1/4-12 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 5 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.712
Number of flutes5
Overall length3.156
Shank diameter0.323
Square length1
Square size0.766
Threads per inch12
Thread directionRight Hand
Thread length0.6653543378661
Thread size in1-1/4-12
Thread standardUNF
