OSG

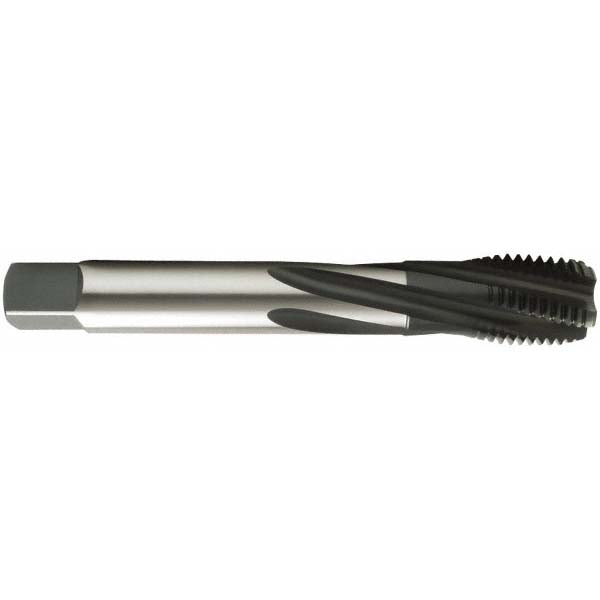

1-3/8-12 UNF Vanadium High-Speed Steel Tap, Oxide - OSG 1301403901
MFR# 1301403901Series 13014
$444.93List $560.73
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size1-3/8-12
CoatingOxide
Description
The OSG 1301403901 is a 1-3/8-12 UNF Vanadium High-Speed Steel tap with a Oxide finish. 5 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)49.90
Number of flutes5
Overall length (mm)85.70
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter1.1080
Square length1.0625
Square size0.8310
Threads per inch12
Thread directionRight Hand
Thread length1.0000
Thread size in1-3/8-12
Thread standardUNF
