OSG

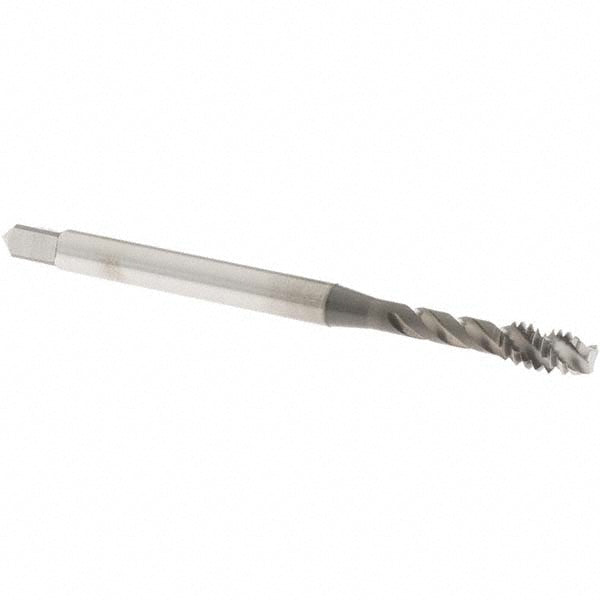

#10-24 UNC Vanadium High-Speed Steel Tap, Nitride - OSG 1301900503
MFR# 1301900503Series 13019
$27.37List $34.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingNitride
Description
The OSG 1301900503 is a #10-24 UNC Vanadium High-Speed Steel tap with a Nitride finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishNitride
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialVanadium High-Speed Steel
Material applicationAluminum
Number of flutes3
Overall length in2-3/8
Shank diameter0.2550
Square length0.2500
Square size0.1520
Threads per inch24
Thread directionRight Hand
Thread length0.3260
Thread limitH3
Thread size in#10-24
Thread standardUNC
