OSG

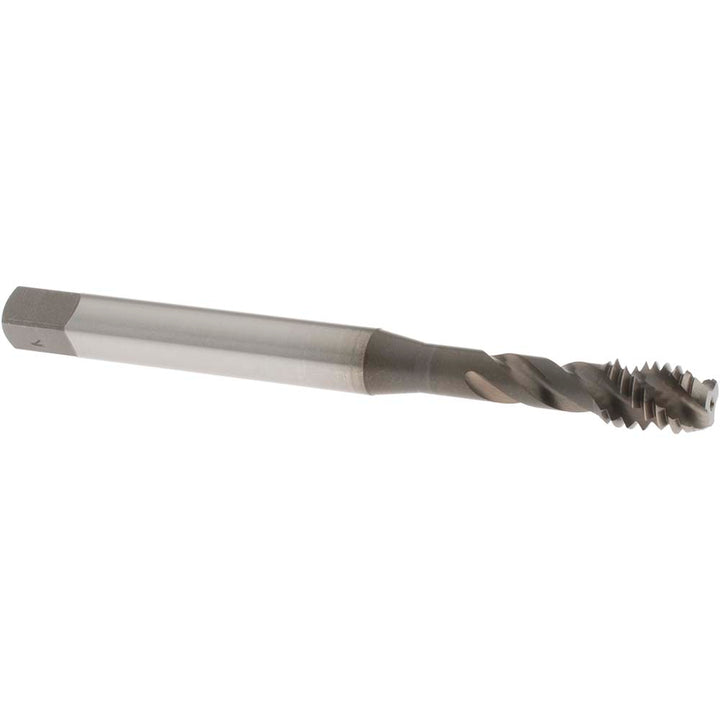

5/16-18 UNC Vanadium High-Speed Steel Tap, Nitride - OSG 1301901103
MFR# 1301901103Series 13019
$32.54List $41.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingNitride
Description
The OSG 1301901103 is a 5/16-18 UNC Vanadium High-Speed Steel tap with a Nitride finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishNitride
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialVanadium High-Speed Steel
Material applicationAluminum
Number of flutes3
Overall length in2-23/32
Shank diameter0.141
Square length0.375
Square size0.238
Threads per inch18
Thread directionRight Hand
Thread length0.444
Thread limitH5
Thread size in5/16-18
Thread standardUNC
