OSG

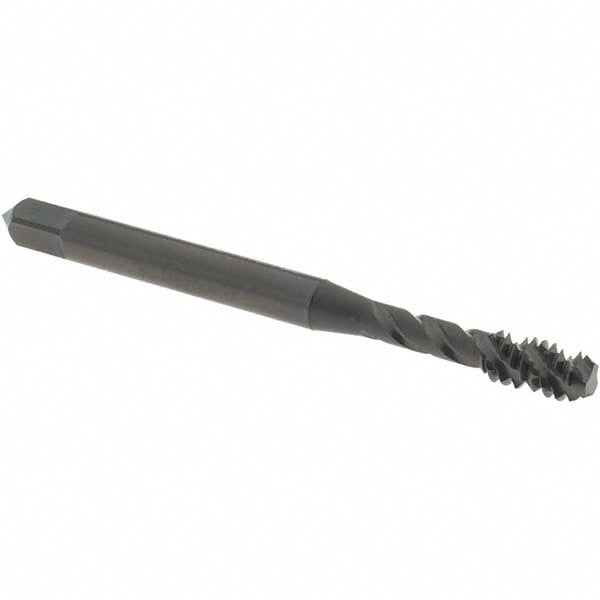

#10-24 UNC High-Speed Steel Tap, Steam Oxide - OSG 1302001601
MFR# 1302001601Series 13020
$21.74List $27.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingSteam Oxide
Description
The OSG 1302001601 is a #10-24 UNC High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.866
Number of flutes3
Overall length in2-3/8
Shank diameter0.194
Square length0.25
Square size0.152
Threads per inch24
Thread directionRight Hand
Thread length0.326
Thread limitH3
Thread size in#10-24
Thread standardUNC
