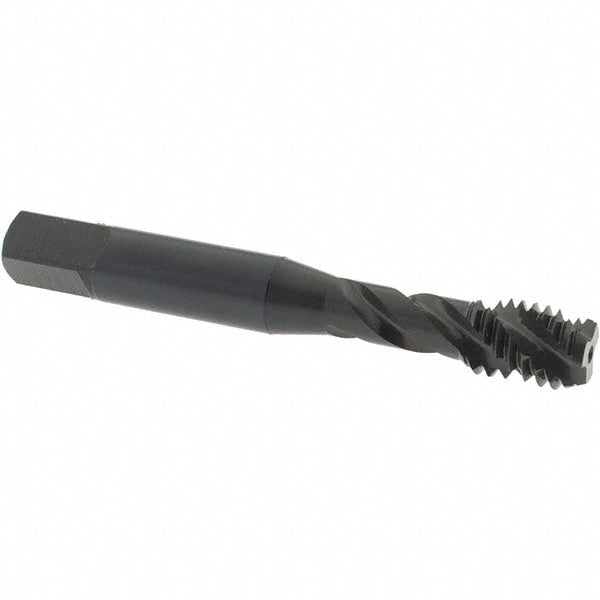

3/8-16 UNC High-Speed Steel Tap, Steam Oxide - OSG 1302002201
MFR# 1302002201Series 13020
$37.73List $47.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingSteam Oxide
Description
The OSG 1302002201 is a 3/8-16 UNC High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.2510
Number of flutes3
Overall length in2-15/16
Shank diameter0.3810
Square length0.4375
Square size0.2860
Threads per inch16
Thread directionRight Hand
Thread length0.5000
Thread limitH3
Thread size in3/8-16
Thread standardUNC
