OSG

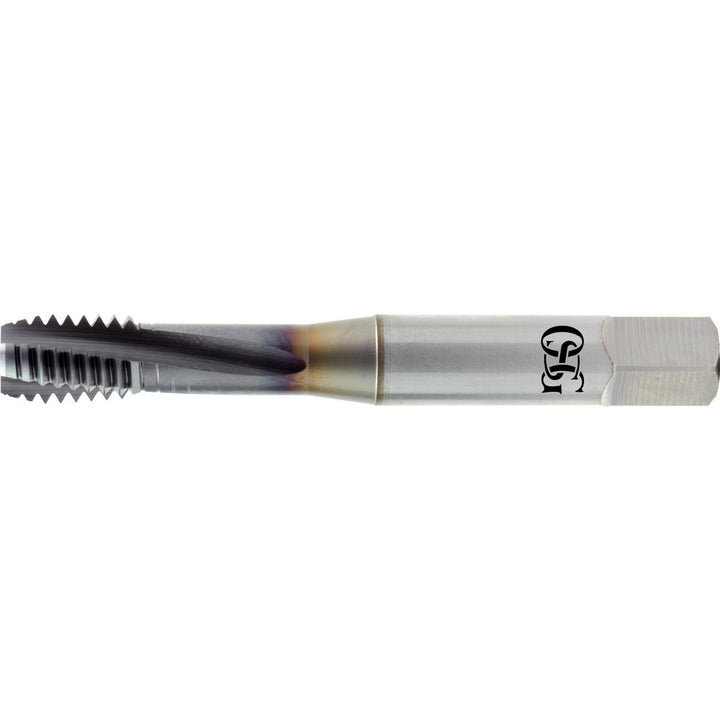

1/2-13 UNC Powdered Metal Tap, TiCN - OSG 1305713008
MFR# 1305713008Series 313TI
$85.59List $109.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiCN
Description
The OSG 1305713008 is a 1/2-13 UNC Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length (mm)18.1
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square length0.4375
Square size0.275
Threads per inch13
Thread directionRight Hand
Thread length0.614
Thread limitH5
Thread size in1/2-13
Thread standardUNC
