OSG

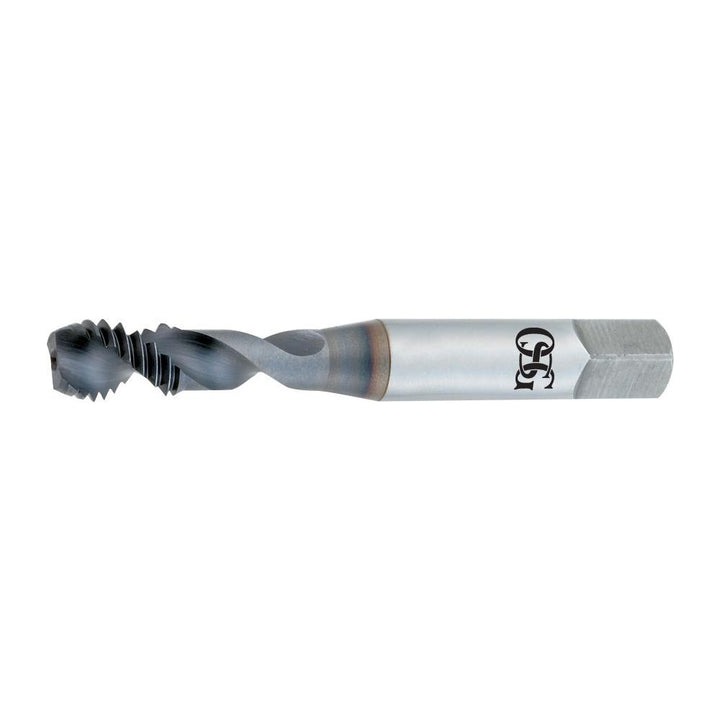

#10-24 UNC Vanadium High-Speed Steel Tap - OSG 1305800308
MFR# 1305800308Series 13058
$31.46List $40.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-24
Description
The OSG 1305800308 is a #10-24 UNC Vanadium High-Speed Steel tap. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAluminum
Neck length0.8660
Number of flutes2
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length0.2500
Square size0.1520
Threads per inch24
Thread directionRight Hand
Thread length0.3268
Thread size in#10-24
Thread standardUNC
