OSG
3/8-16 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1305900908
MFR# 1305900908Series 13059
$35.85List $45.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size3/8-16
CoatingTiCN
Description

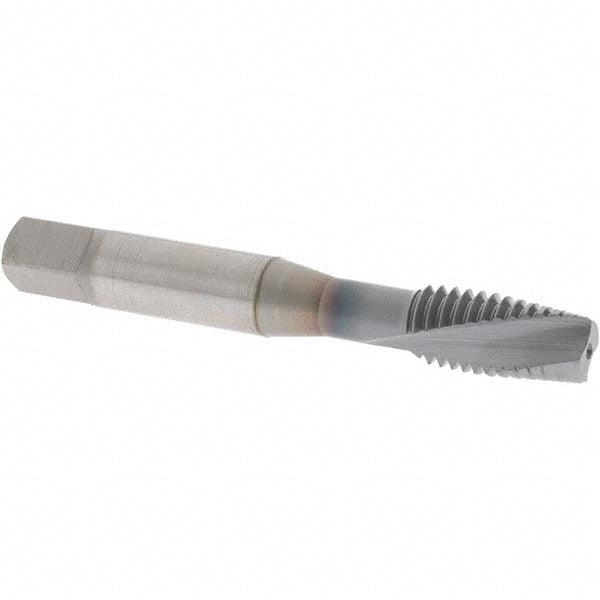

The OSG 1305900908 is a 3/8-16 UNC Vanadium High-Speed Steel tap with a TiCN finish. 2 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle20
MaterialVanadium High-Speed Steel
Material applicationAluminum
Neck length2.126
Number of flutes2
Overall length in2-15/16
OversizeNo
Shank diameter0.48
Square length0.4375
Square size0.286
Threads per inch16
Thread directionRight Hand
Thread length0.752
Thread limitH3
Thread size in3/8-16
Thread standardUNC
