OSG

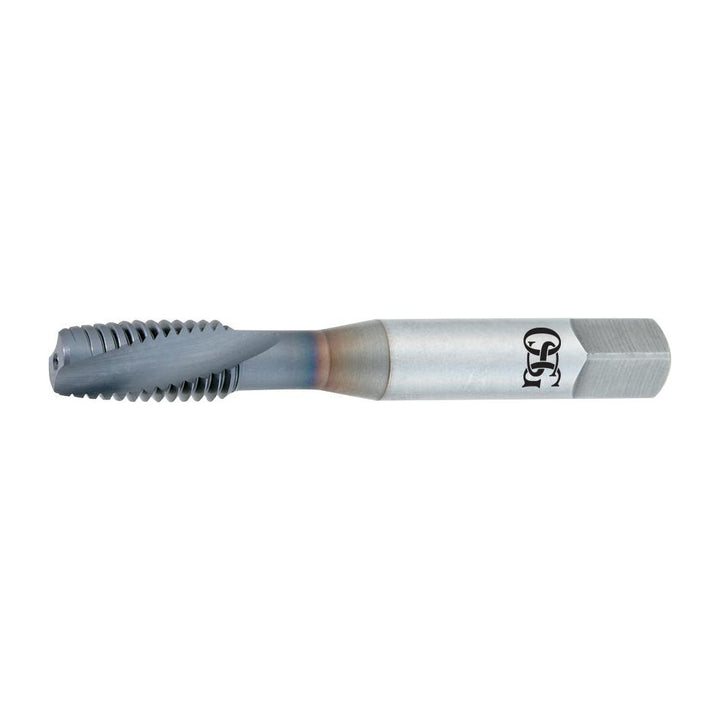

1/2-13 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1305901108
MFR# 1305901108Series 13059
$51.02List $65.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/2-13
CoatingTiCN
Description
The OSG 1305901108 is a 1/2-13 UNC Vanadium High-Speed Steel tap with a TiCN finish. 2 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle20
MaterialVanadium High-Speed Steel
Material applicationAluminum
Number of flutes2
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square length0.4375
Square size0.275
Threads per inch13
Thread directionRight Hand
Thread length0.921
Thread limitH3
Thread size in1/2-13
Thread standardUNC
