OSG

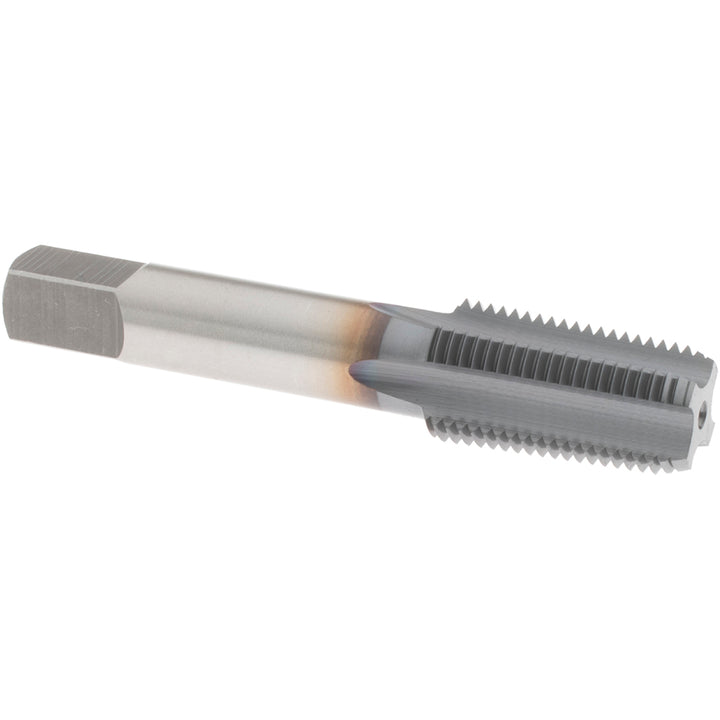

1/8-27 NPT High-Speed Steel Standard Tap, TiCN - OSG 1310208
MFR# 1310208Series 108
$42.75List $54.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/8-27
CoatingTiCN
Description
The OSG 1310208 is a 1/8-27 NPT High-Speed Steel Standard tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
MaterialHigh-Speed Steel
Material applicationCarbon Steel; Cast Iron; Aluminum
Number of flutes4
Overall length2.1259842519685
Shank diameter0.3125
Square size0.2340
Tap typeStandard
Threads per inch27
Thread length in3/4
Thread profileStandard
Thread size in1/8-27
Thread standardNPT
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
