OSG

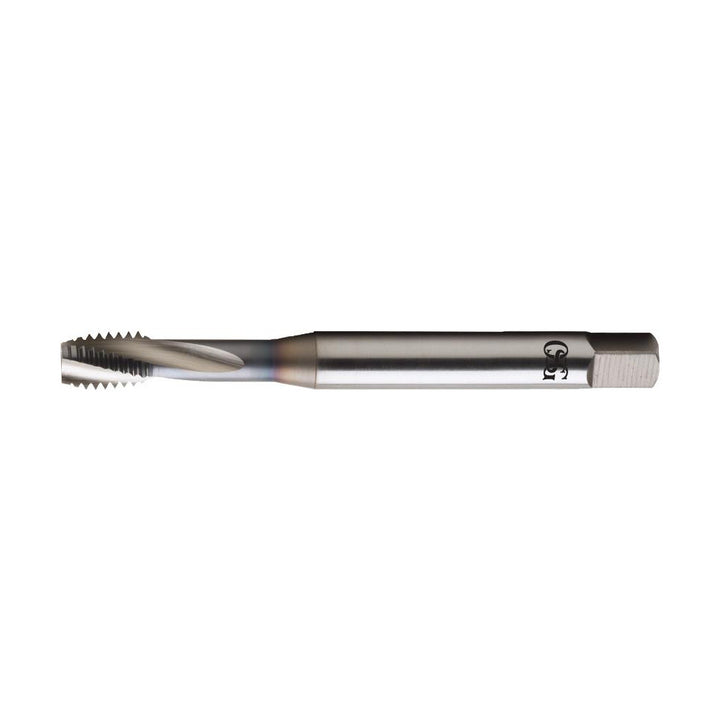

M18x2.5 M Vanadium High-Speed Steel Tap, TiCN - OSG 1311301708
MFR# 1311301708Series 13113
$220.61List $282.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description
The OSG 1311301708 is a M Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit6H
Coating finishTiCN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel
Neck length1.251
Number of flutes4
Overall length2.938
OversizeNo
Shank diameter0.381
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)2
Thread size (mm)M18x2.5
Thread standardM
