OSG

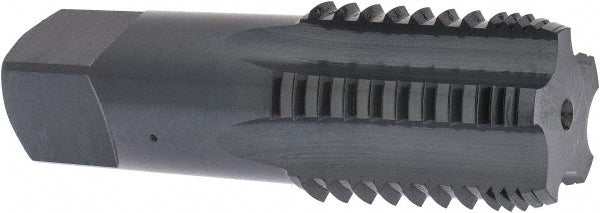

3/4-14 NPT High-Speed Steel Tap, Oxide - OSG 1315601
MFR# 1315601Series 108G
$193.68List $248.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size3/4-14
CoatingOxide
Description
The OSG 1315601 is a 3/4-14 NPT High-Speed Steel tap with a Oxide finish. 5 flutes.
Specifications
ApplicationTapping
ChamferModified Bottoming
Coating finishOxide
HookRegular
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel; Cast Iron; Hardened Steel
Number of flutes5
Overall length in3-1/4
Shank diameter0.9063
Square size0.6790
Threads per inch14
Thread length in1-3/8
Thread size in3/4-14
Thread standardNPT
