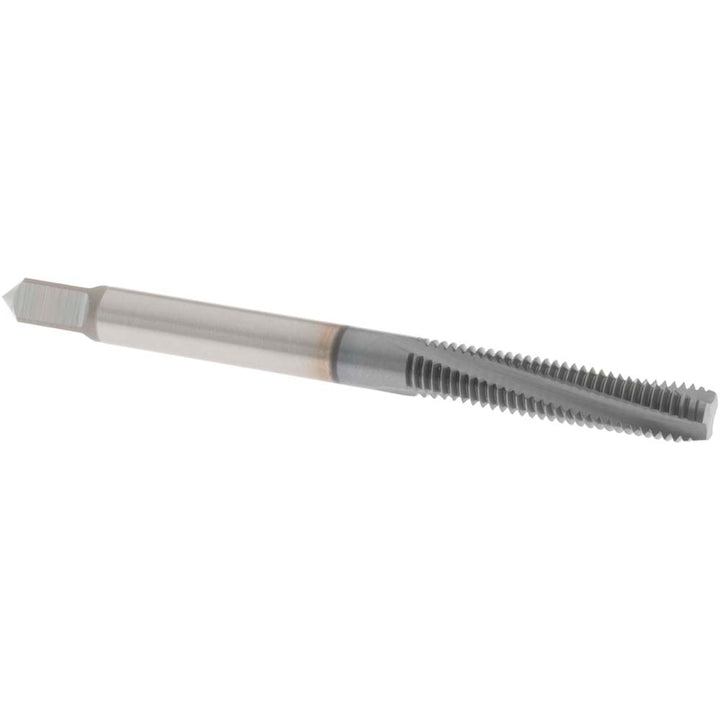

M5x0.8 M Powdered Metal Tap, TiCN - OSG 1316210308
MFR# 1316210308Series 345TI
$50.08List $64.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The OSG 1316210308 is a M Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length (mm)49.1
Number of flutes3
Overall length in2-3/8
Shank diameter (mm)9.3218
Shank length0.1940
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length0.8750
Thread limitD4
Thread size (mm)M5x0.8
Thread standardM
