OSG

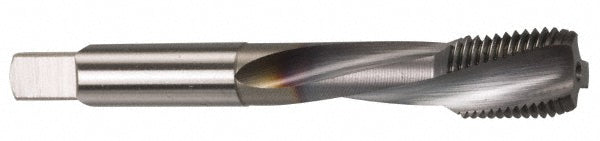

M10x1.5 M Powdered Metal Tap, TiCN - OSG 1316210708
MFR# 1316210708Series 345TI
$83.38List $106.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The OSG 1316210708 is a M Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length (mm)35
Number of flutes3
Overall length in2-15/16
Shank diameter (mm)8.772
Shank length0.3810
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length1.2500
Thread limitD6
Thread size (mm)M10x1.5
Thread standardM
