OSG

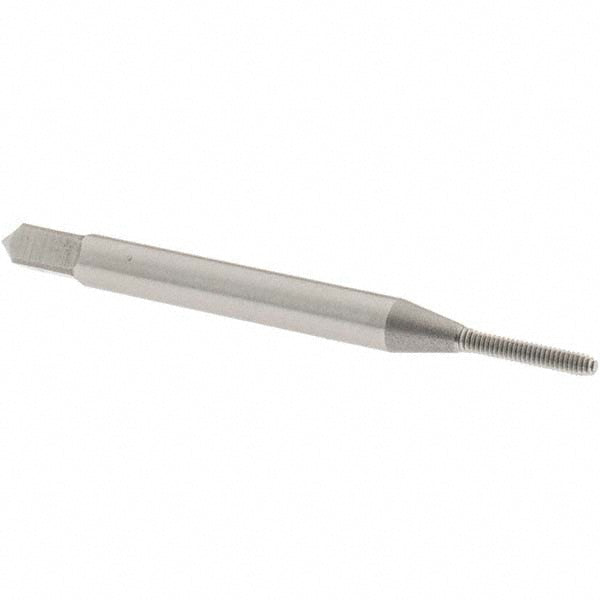

#0-80 UNF Cobalt Tap - OSG 1400100200
MFR# 1400100200Series 14001
$19.89List $25.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#0-80
Description
The OSG 1400100200 is a #0-80 UNF Cobalt tap.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in1-5/8
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.3500
Threads per inch80
Thread directionRight Hand
Thread length0.3173
Thread limitH2
Thread size in#0-80
Thread standardUNF
Trade nameHY-PRO NRT
