OSG

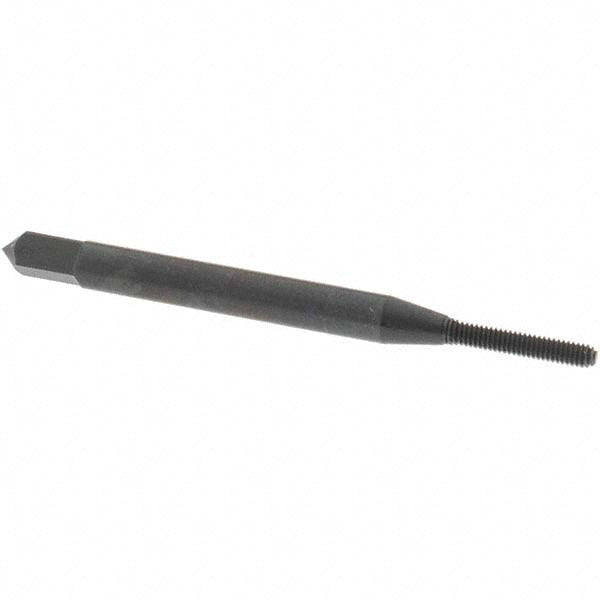

#1-72 UNF Cobalt Tap, Steam Oxide - OSG 1400101401
MFR# 1400101401Series 14001
$19.89List $25.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#1-72
CoatingSteam Oxide
Description
The OSG 1400101401 is a #1-72 UNF Cobalt tap with a Steam Oxide finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1-1.5P
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in1-11/16
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.4130
Threads per inch72
Thread directionRight Hand
Thread length0.3740
Thread limitH2
Thread size in#1-72
Thread standardUNF
Trade nameHY-PRO NRT
