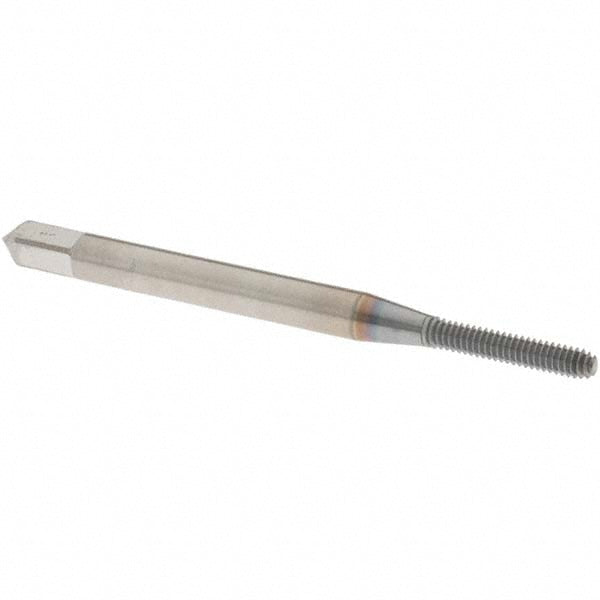

#2-56 UNC Cobalt Tap, TiCN - OSG 1400102508
MFR# 1400102508Series 14001
$20.81List $26.23
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#2-56
CoatingTiCN
Description
The OSG 1400102508 is a #2-56 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in1-3/4
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.4760
Threads per inch56
Thread directionRight Hand
Thread length0.4370
Thread limitH2
Thread size in#2-56
Thread standardUNC
Trade nameHY-PRO NRT
