OSG
#2-56 UNC High-Speed Steel-CO Tap, CrN - OSG 1400102806
MFR# 1400102806Series 14001
$19.81List $25.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#2-56
CoatingCrN
Description

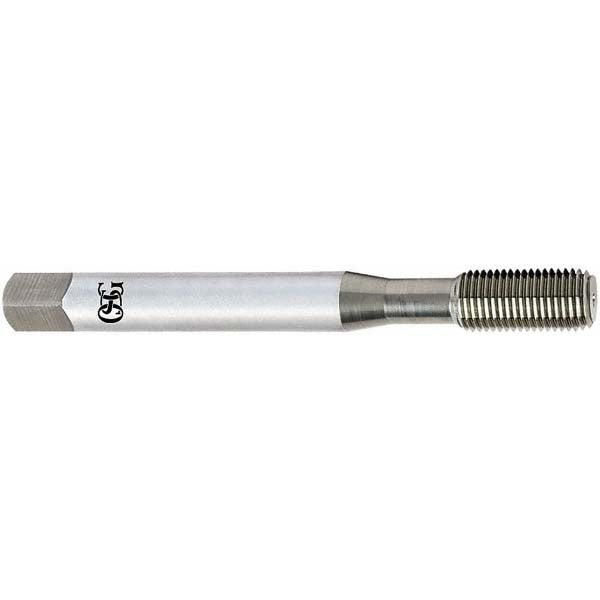

The OSG 1400102806 is a #2-56 UNC High-Speed Steel-CO tap with a CrN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishCrN
Coolant throughNo
MaterialHigh-Speed Steel-CO
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in1-3/4
Shank diameter0.1410
Square size0.1100
Tapping depth0.4760
Thread directionRight Hand
Thread length0.4370
Thread limitH5
Thread size in#2-56
Thread standardUNC
Trade nameHY-PRO NRT
