#4-40 UNC Cobalt Tap, TiN - OSG 1400105305
MFR# 1400105305Series 14001
$22.87List $28.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#4-40
CoatingTiN
Description

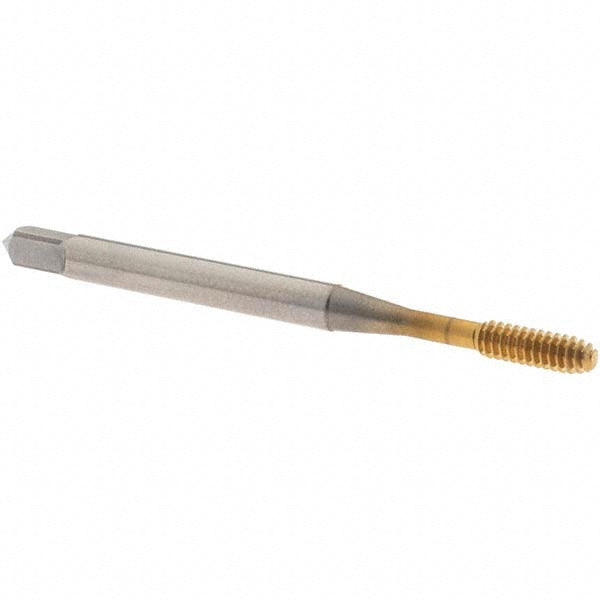

The OSG 1400105305 is a #4-40 UNC Cobalt tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in1-7/8
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.5590
Threads per inch40
Thread directionRight Hand
Thread length0.2950
Thread limitH3
Thread size in#4-40
Thread standardUNC
Trade nameHY-PRO NRT
