OSG

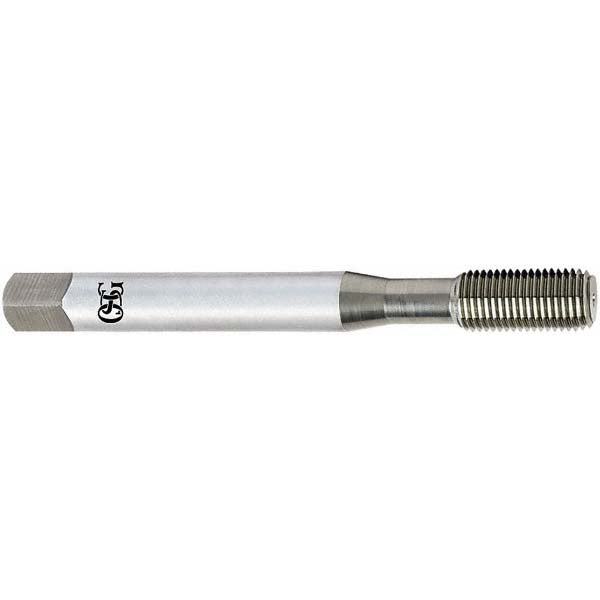

#4-40 UNC Cobalt Tap, TiCN - OSG 1400105708
MFR# 1400105708Series 14001
$18.03List $23.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#4-40
CoatingTiCN
Description
The OSG 1400105708 is a #4-40 UNC Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in1-7/8
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.5590
Threads per inch40
Thread directionRight Hand
Thread length0.2950
Thread limitH7
Thread size in#4-40
Thread standardUNC
Trade nameHY-PRO NRT
