OSG
#5-40 UNC High-Speed Steel-CO Tap, TiN - OSG 1400107805
MFR# 1400107805Series 14001
$19.11List $24.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#5-40
CoatingTiN
Description

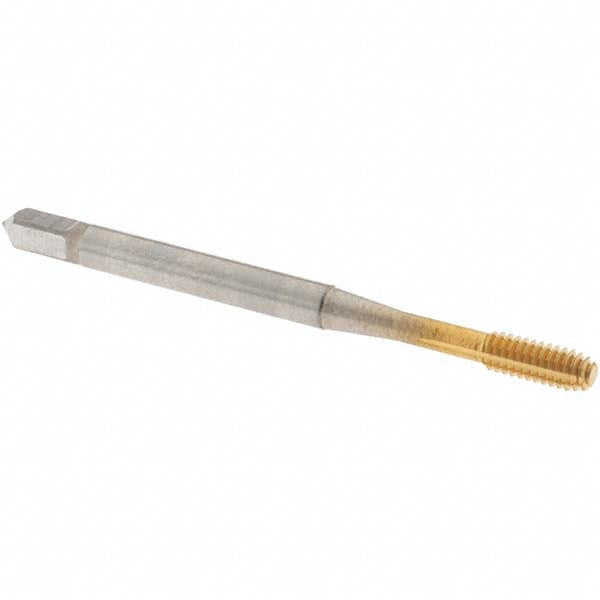

The OSG 1400107805 is a #5-40 UNC High-Speed Steel-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel-CO
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in1-15/16
Shank diameter0.1410
Square size0.1100
Tapping depth0.6260
Thread directionRight Hand
Thread length0.2990
Thread limitH4
Thread size in#5-40
Thread standardUNC
Trade nameHY-PRO NRT
