OSG
#5-40 UNC Cobalt Tap, Steam Oxide - OSG 1400107901
MFR# 1400107901Series 14001
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#5-40
CoatingSteam Oxide
Description

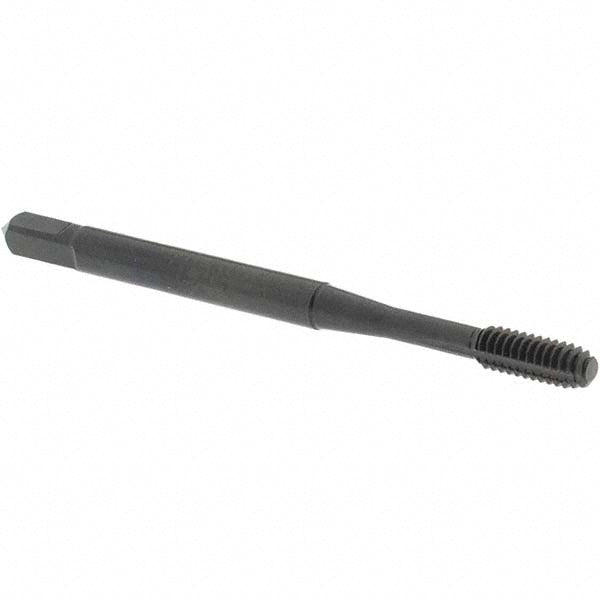

The OSG 1400107901 is a #5-40 UNC Cobalt tap with a Steam Oxide finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in1-15/16
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.6260
Threads per inch40
Thread directionRight Hand
Thread length0.2990
Thread limitH5
Thread size in#5-40
Thread standardUNC
Trade nameHY-PRO NRT
