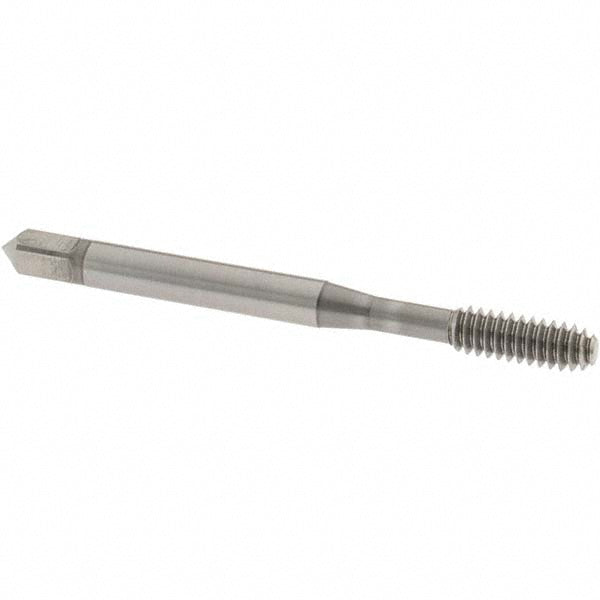

#10-24 UNC Cobalt Tap - OSG 1400118300
MFR# 1400118300Series 14001
$14.67List $18.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-24
Description
The OSG 1400118300 is a #10-24 UNC Cobalt tap.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in2-3/8
Shank diameter0.1940
Square length0.2500
Square size0.1520
Tapping depth0.8660
Threads per inch24
Thread directionRight Hand
Thread length0.4920
Thread limitH4
Thread size in#10-24
Thread standardUNC
Trade nameHY-PRO NRT
